positionR: WADE Positioning for Acoustic Telemetry • positionR

Tools for Analyzing Acoustic Telemetry Data - Positioning, Simulation, & Array Design

positionR provides comprehensive tools for acoustic telemetry array design, fish movement simulation, animal positioning using Weighted Average Detection Efficiency (WADE) methodology, and point generation for habitat selection studies that integrate sampling regions. One major advancement is the integration of receiver detection efficiency models into fish positioning, array performance, and habitat selection. The integrated analysis ecosystem provides powerful methodology to assess positioning and habitat selection model performance with simulations to inform best practices for assessing these metrics with real world aquatic animal tracking studies.

Features

🎯 Array Design & Optimization

Multiple receiver placement strategies (regular, spaced, random patterns)
Distance-based detection efficiency model generation with depth integration
System-wide detection coverage analysis
Array performance evaluation and optimization

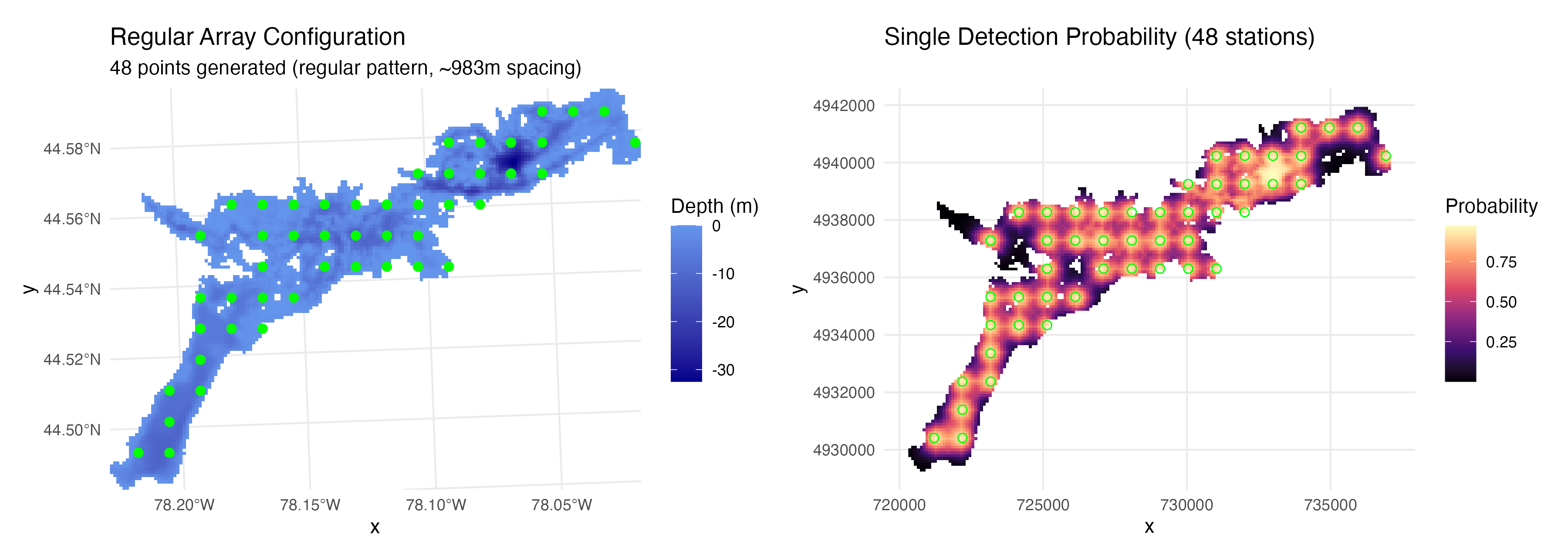

Array Design and Detection Efficiency

🐟 Movement Simulation

Generate movement tracks with correlated random walk models
Produce detection patterns from tracks based on detection efficiency
Compare positioning and habitat selection to true track locations for optimization
Advanced movement models integrate behavioral states relative to species tendencies and environmental conditions (e.g., temperature). Extensible framework for users to build upon

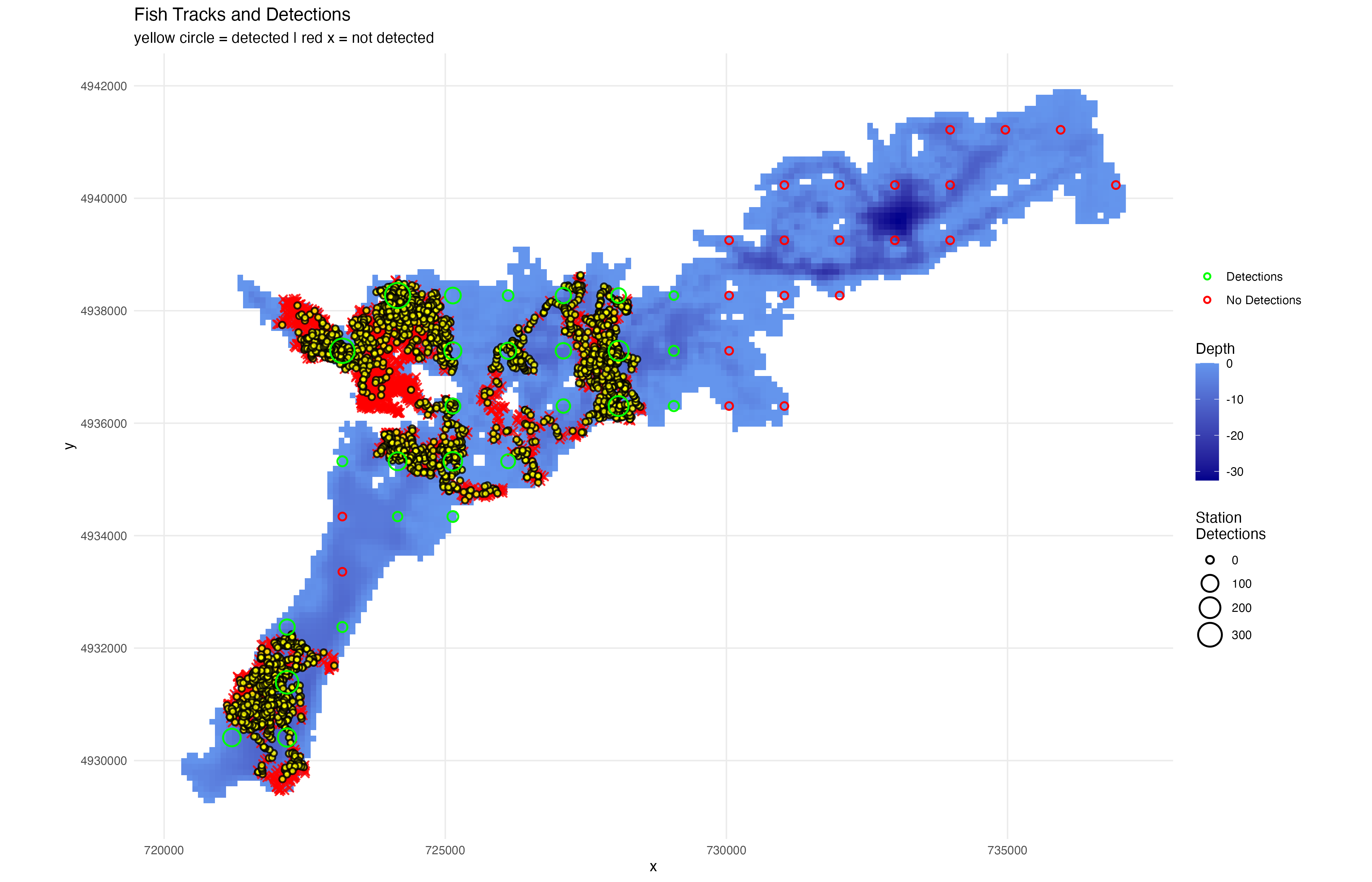

Fish Movement Simulation

📍 WADE Positioning

Weighted Average Detection Efficiency animal positioning uses detection efficiency information to position animals
Flexible detection model applications and temporal aggregation (e.g., hourly, daily)
Analytical tools for calculating home ranges and habitat selection from WADE positions
Simulations can inform best practices for positioning, depending on endpoints
Field data integration for real acoustic telemetry datasets

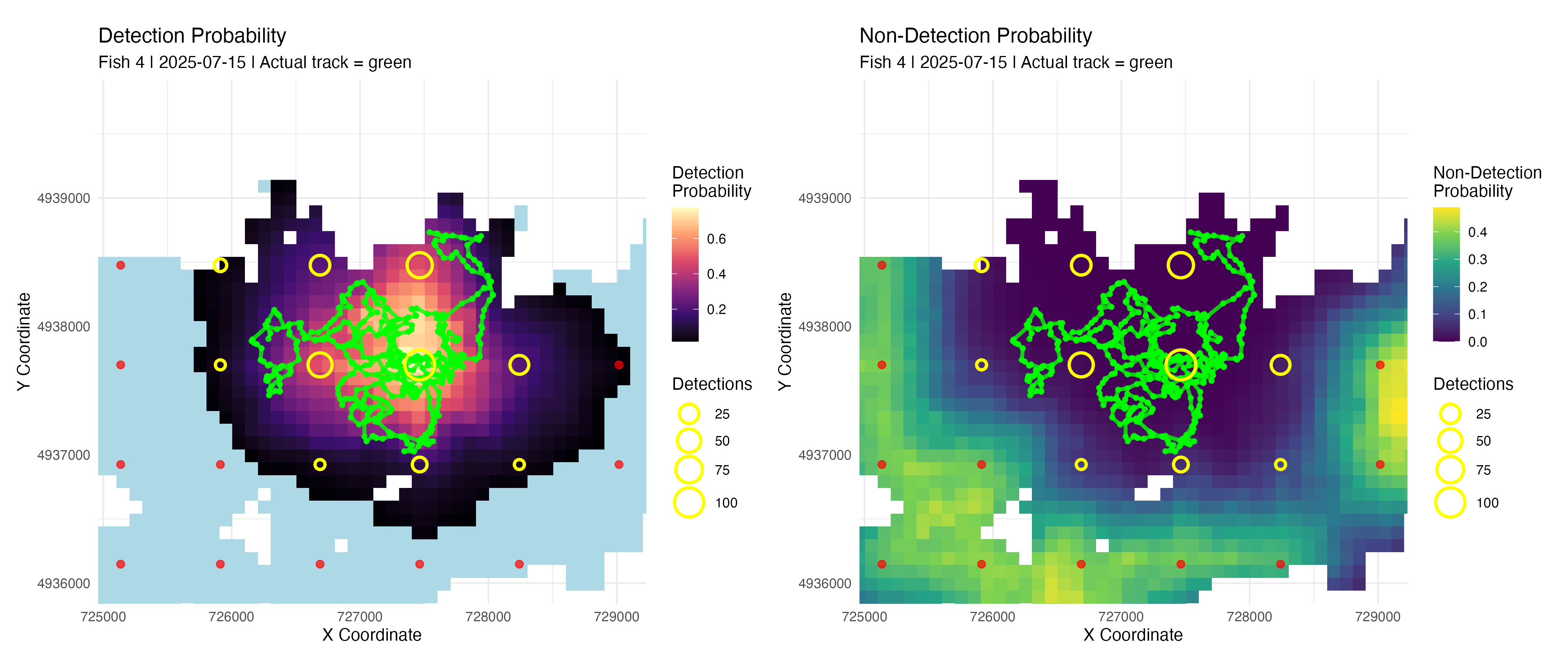

WADE Positioning

📊 Space Use & Habitat Analysis

Multiple space use estimation methods (convex hulls, grid cells, kernel density)
Habitat selection analysis with presence/absence modeling
Comparative analysis between positioning methods

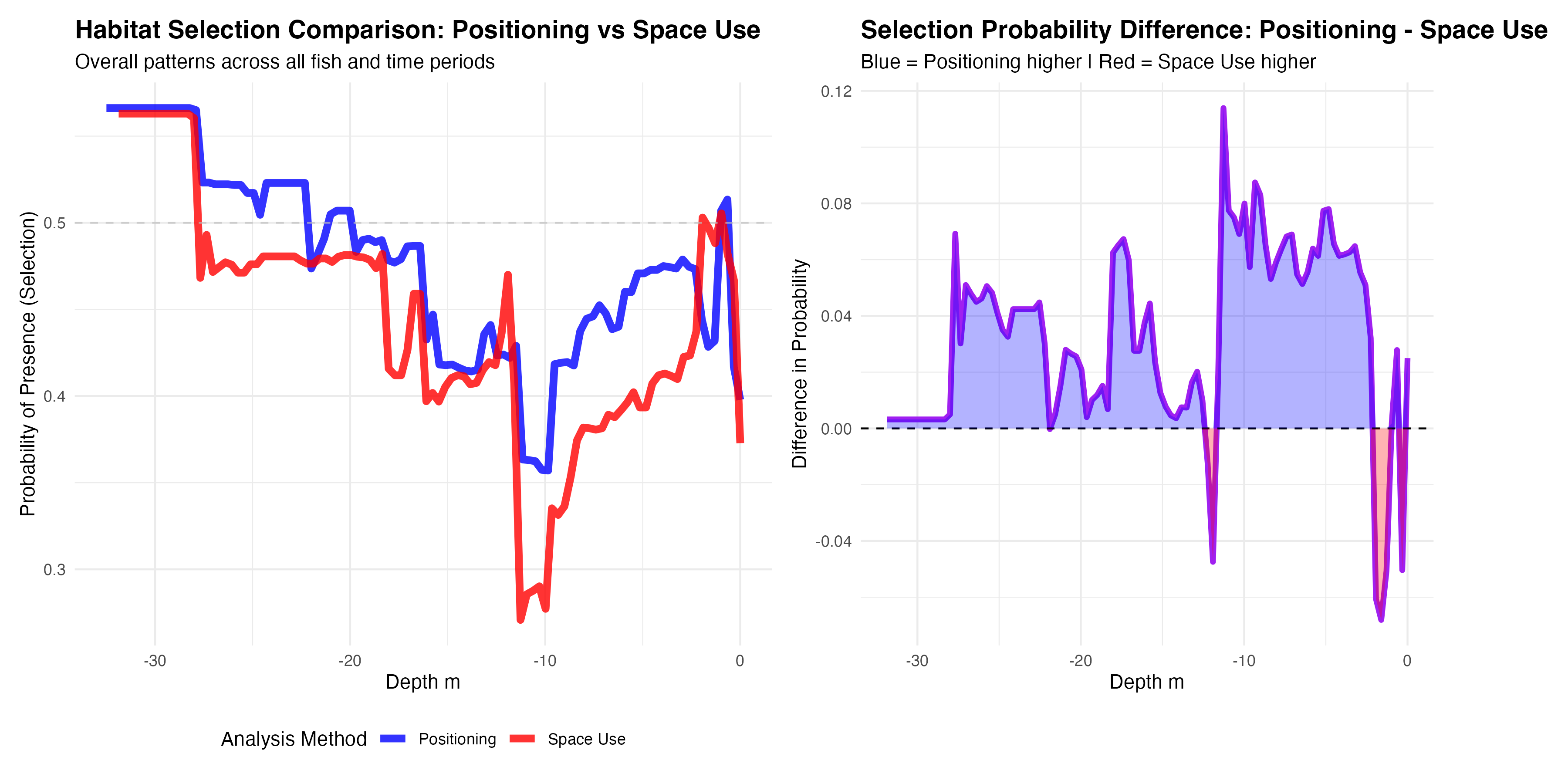

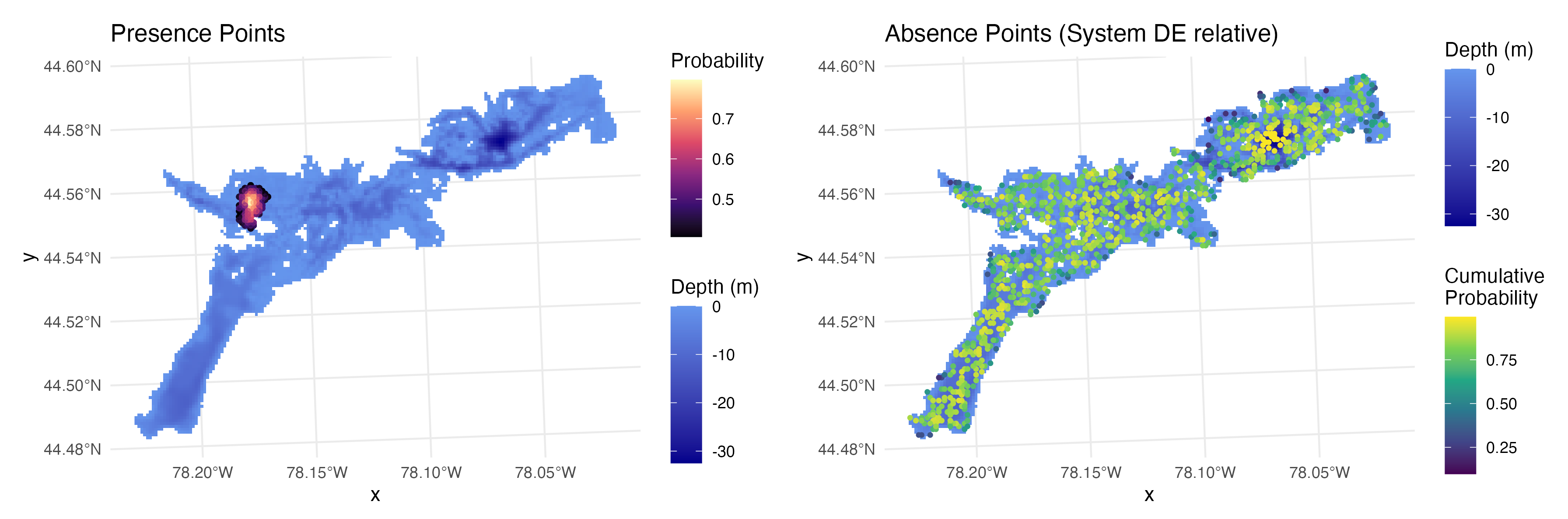

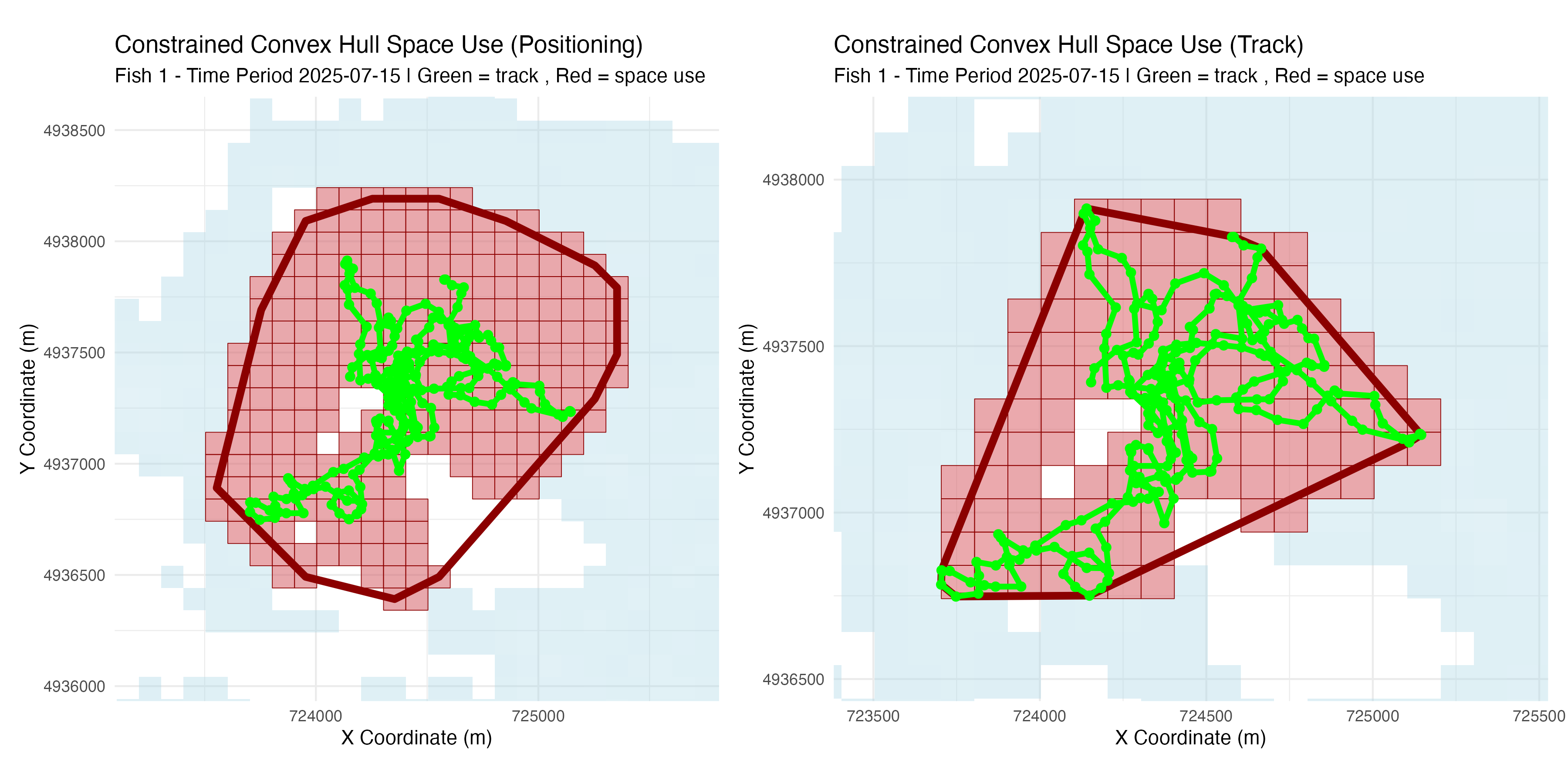

Space Use Analysis Habitat Selection Analysis Habitat Selection Comparison

🔍 Visualization & Analysis

Comprehensive plotting functions for all analysis types
Flexible space use visualization
Detection performance metrics and summaries
Publication-ready figures and plots

Installation

Install the development version from GitHub:

# Install devtools if you haven't already
install.packages("devtools")

# Install positionR with vignettes
devtools::install_github("jakebrownscombe/positionR", build_vignettes = TRUE)

Quick Start: Array Design Simulation

library(positionR)

# Load example depth data
data("depth_raster")
raster::crs(depth_raster) <- "EPSG:32617"

# 1. Generate receiver array (100 stations, regularly spaced)
stations <- generate_regular_points(depth_raster, n_points = 100, seed = 123)

# 2. Calculate cost-weighted distances
station_distances <- calculate_station_distances(
  raster = depth_raster,
  receiver_frame = stations,
  max_distance = 30000,
  station_col = "station_id"
)

# 3. Create detection efficiency model
logistic_DE <- create_logistic_curve_depth(
  min_depth = 2, max_depth = 25,
  d50_min_depth = 150, d95_min_depth = 50,
  d50_max_depth = 300, d95_max_depth = 100,
  plot = TRUE
)

# 4. Calculate system detection coverage
system_DE <- calculate_detection_system(
  distance_frame = station_distances,
  receiver_frame = stations,
  model = logistic_DE$log_model,
  threshold = 0.8,
  output_type = "cumulative"
)

# 5. Simulate fish movement with detections
start_time <- as.POSIXct("2025-07-15 12:00:00", tz = "UTC")

fish_simulation <- simulate_fish_tracks(
  raster = depth_raster,
  station_distances = station_distances,
  n_paths = 5,
  n_steps = 1440,  # 24 hours at 60-second intervals
  time_step = 60,
  start_time = start_time,
  species = "walleye"  # Enables behavioral states
)

# 6. Visualize and analyze results
plot_fish_tracks(fish_simulation, depth_raster, stations)
analyze_detection_performance(fish_simulation)

Quick Start: WADE Positioning with Field Data

library(positionR)

# Load field data (included with package)
data("stoney_fish_detections")  # Detection events
data("stoney_rx_deploy")        # Receiver deployments
data("depth_raster")            # Study area bathymetry

# 1. Calculate station distances for WADE positioning
station_distances <- calculate_station_distances(
  raster = depth_raster,
  receiver_frame = stoney_rx_deploy,
  max_distance = 30000,
  station_col = "station_id"
)

# 2. Prepare detection data for WADE analysis
wade_data <- prepare_detection_data_for_wade(
  detection_events = stoney_fish_detections,
  receiver_deployments = stoney_rx_deploy,
  start_time = as.POSIXct("2023-10-15 00:00:00", tz = "UTC"),
  end_time = as.POSIXct("2023-10-29 23:00:00", tz = "UTC"),
  time_aggregation_method = "daily"
)

# 3. Run WADE positioning algorithm
positioning_results <- calculate_fish_positions(
  detection_data = wade_data,
  station_distances = station_distances,
  logistic_model = logistic_DE$log_model,
  positioning_method = "WADE",
  min_det_threshold = 1,
  information_weighting = TRUE,
  crs = "EPSG:32617"
)

# 4. Visualize positioning results
plot_fish_positions(
  positioning_results = positioning_results,
  raster = depth_raster,
  receiver_frame = stoney_rx_deploy,
  plot_type = "integrated",
  time_filter = "2023-10-27"
)

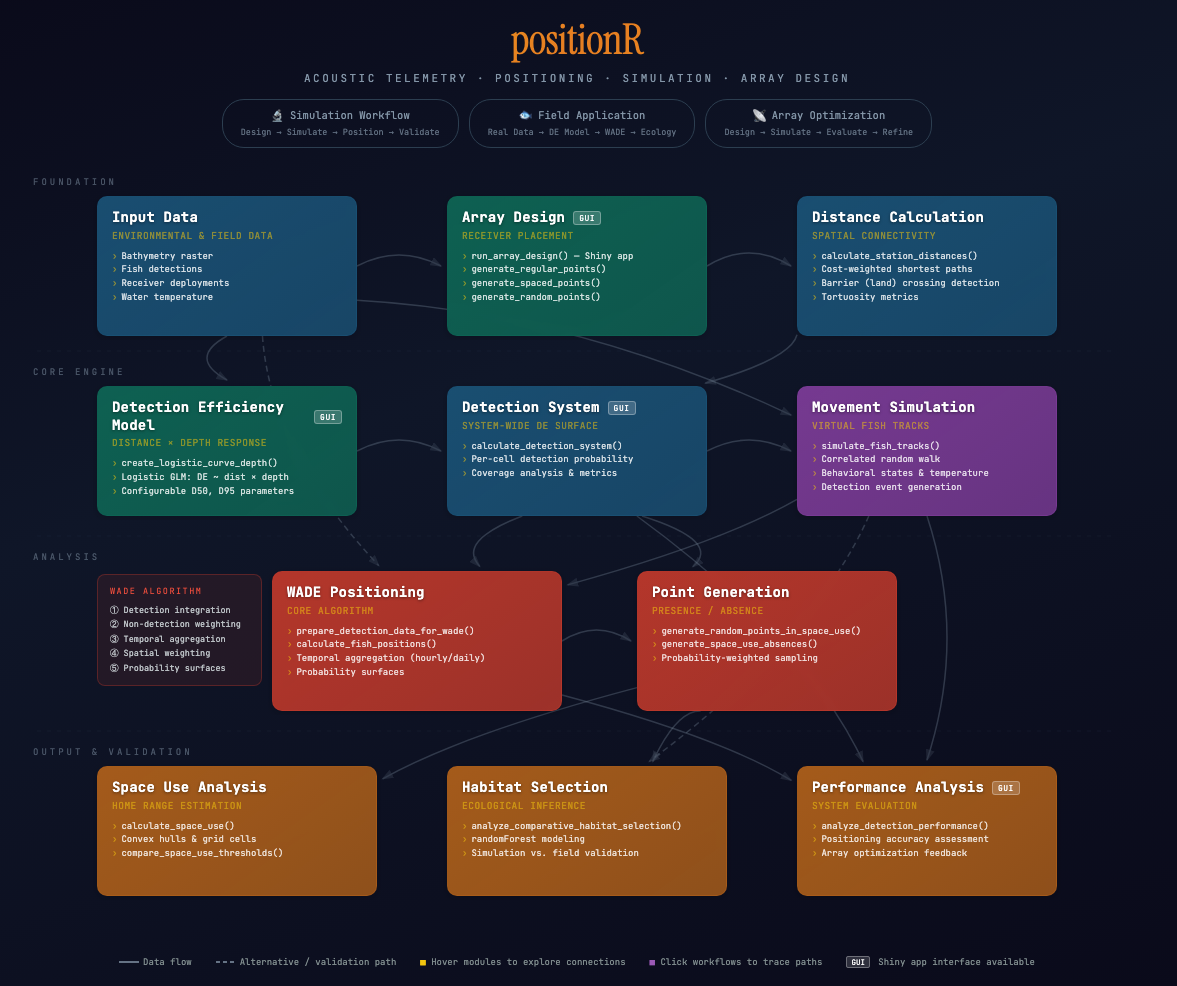

Core Function Categories

🎯 Array Generation

generate_regular_points() - Specific number of regularly spaced receivers
generate_spaced_points() - Receivers with defined minimum spacing
generate_random_points() - Randomly distributed receivers

📡 Detection Modeling

create_logistic_curve_depth() - Distance-depth detection efficiency models
calculate_station_distances() - Cost-weighted distance calculations
calculate_detection_system() - System-wide detection probability surfaces

🐟 Movement & Positioning

simulate_fish_tracks() - Behavioral movement simulation with species parameters
prepare_detection_data_for_wade() - Process field detection data
calculate_fish_positions() - WADE positioning algorithm

📈 Space Use Analysis

calculate_space_use() - Multiple space use estimation methods
generate_random_points_in_space_use() - Point sampling from space use areas
generate_space_use_absences() - Generate absence points for habitat analysis
analyze_comparative_habitat_selection() - Compare positioning vs tracking data

🎨 Visualization

plot_fish_tracks() - Movement paths with detection events
plot_fish_positions() - WADE positioning probability surfaces
plot_space_use() - Space use area visualizations
plot_behavioral_states() - Behavioral state time series
plot_depth_selection() - Habitat selection analysis plots

📊 Analysis

analyze_detection_performance() - Detection system performance metrics
analyze_behavioral_temperature() - Temperature-behavior interactions
compare_space_use_thresholds() - Space use method comparisons

Included Datasets

depth_raster - Example bathymetry raster for system testing
stoney_fish_detections - Real walleye detection data from Stoney Lake
stoney_rx_deploy - Receiver deployment metadata
daily_temperature - Daily water temperature data for behavioral modeling

📚 Tutorials & Vignettes

Comprehensive step-by-step tutorials demonstrate the full capabilities of positionR:

🐟 WADE Positioning Tutorial

Complete workflow for fine-scale fish positioning using WADE methodology

Learn how to apply WADE positioning to real acoustic telemetry data, including detection data preparation, model fitting, positioning calculations, and space use analysis. Covers advanced topics like behavioral state modeling, temperature effects, and comparative analysis between positioning methods.

vignette("WADE_Simulation", package = "positionR")

📡 Array Design & Movement Simulation

Optimize receiver arrays and simulate realistic fish movements

Design effective receiver arrays using multiple placement strategies, model detection efficiency based on environmental conditions, simulate realistic fish movements with behavioral states, and evaluate system performance before deployment. Includes habitat selection analysis and presence-absence modeling.

vignette("Array_Design_Simulation", package = "positionR")

🔍 Browse All Tutorials

browseVignettes("positionR")

Online Documentation: Visit our package website for enhanced tutorials with interactive examples and detailed methodology explanations.

Key Applications

🔬 Array Design: Optimize receiver placement for detection coverage
📍 Animal Positioning: Locate animals using WADE methodology
🏠 Habitat Selection: Analyze space use and habitat preferences
🌡️ Behavioral Ecology: Study temperature-dependent movement patterns
📊 System Evaluation: Assess performance of existing telemetry arrays
🎯 Simulation Studies: Test scenarios and validate methodologies

Methodology: WADE Positioning

The Weighted Average Detection Efficiency (WADE) methodology provides probabilistic animal positioning by:

Detection Integration: Combining detection events with receiver-specific detection probabilities
Non-detection Integration: Incorporating information from receivers that should have detected the animal but didn’t
Temporal Aggregation: Integrating data across user-defined time periods
Spatial Weighting: Weighting positions by detection efficiency and detection frequency
Uncertainty Quantification: Providing probability surfaces rather than point estimates

Dependencies

Key dependencies include:

Spatial: raster, sf, sp, gdistance - spatial data handling and analysis
Visualization: ggplot2, ggridges, scales - publication-quality plots
Data: dplyr, tidyr, lubridate - data manipulation and processing
Movement: circular, FNN - movement modeling and nearest neighbor calculations
Analysis: randomForest - habitat selection modeling

Citation

If you use positionR in your research, please cite:

Brownscombe, J.W. (2025). positionR: Weighted Average Detection Efficiency (WADE)
Positioning for Acoustic Telemetry. R package version 1.0.0.
https://github.com/jakebrownscombe/positionR

Contributing

Contributions are welcome! Please:

Fork the repository
Create a feature branch (git checkout -b feature/new-feature)
Commit changes (git commit -am 'Add new feature')
Push to branch (git push origin feature/new-feature)
Create a Pull Request

License

This project is licensed under the GPL-3 License - see the LICENSE file for details.
